Bürkert
13 products, 293 attributes mapped across 3 ETIM classes. 63% coverage from public catalogs and spec sheets alone.
Products13

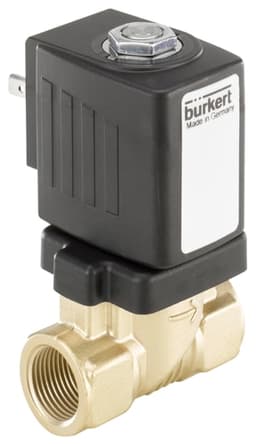

Housing materialBrass
Material qualityCuZn40Pb2 (CW617N)
Surface protectionUntreated
Material sealingNBR (nitrile rubber)
Nominal diameterDN 20
Connection 1Internal thread cylindrical BSPP-G (ISO 228-1)
Connection 2Internal thread cylindrical BSPP-G (ISO 228-1)
Valve bore20 mm
Max. pressure difference for AC model10 bar
Min. pressure difference0 bar
Max. differential pressure water/liquids10 bar
Medium temperature (continuous)-10 to 80 °C
Max. ambient temperature55 °C
ModelStraight
Indirect effectYes
Emergency manual operationNone
Electrical connectionPlug EN 175301-803 type A
Connection voltage230 V
Voltage typeAC
Frequency input voltage50-60 Hz
Deactivated when openNo
Switch-on duration100 %
Degree of protection (IP)IP65
Explosion safetyNone
Kvs value9.0
FreeflowNo
Thermal disinfectionNo
With sieveNo
Housing materialBrass
Material qualityCuZn40Pb2 (CW617N)
Surface protectionUntreated
Material sealingNBR (nitrile rubber)
Nominal diameterDN 15
Connection 1Internal thread cylindrical BSPP-G (ISO 228-1)
Connection 2Internal thread cylindrical BSPP-G (ISO 228-1)
Valve bore13 mm
Max. pressure difference for DC model10 bar
Min. pressure difference0 bar
Max. differential pressure water/liquids10 bar
Medium temperature (continuous)-10 to 80 °C
Max. ambient temperature55 °C
ModelStraight
Indirect effectYes
Emergency manual operationNone
Electrical connectionPlug EN 175301-803 type A
Connection voltage24 V
Voltage typeDC
Deactivated when openNo
Switch-on duration100 %
Degree of protection (IP)IP65
Explosion safetyNone
Kvs value3.6
FreeflowNo
Thermal disinfectionNo
With sieveNo
Housing materialBrass
Material qualityCuZn40Pb2 (CW617N)
Surface protectionUntreated
Material sealingNBR (nitrile rubber)
Nominal diameterDN 15
Connection 1Internal thread cylindrical BSPP-G (ISO 228-1)
Connection 2Internal thread cylindrical BSPP-G (ISO 228-1)
Valve bore13 mm
Max. pressure difference for DC model16 bar
Min. pressure difference0.2 bar
Max. differential pressure water/liquids16 bar
Medium temperature (continuous)-10 to 80 °C
Max. ambient temperature55 °C
ModelStraight
Indirect effectYes
Emergency manual operationNone
Electrical connectionPlug EN 175301-803 type A
Connection voltage24 V
Voltage typeDC
Deactivated when openNo
Switch-on duration100 %
Degree of protection (IP)IP65
Explosion safetyNone
Kvs value3.8
FreeflowNo
Thermal disinfectionNo
With sieveNo
Housing materialBrass
Material qualityCuZn40Pb2 (CW617N)
Surface protectionUntreated
Material sealingNBR (nitrile rubber)
Nominal diameterDN 25
Connection 1Internal thread cylindrical BSPP-G (ISO 228-1)
Connection 2Internal thread cylindrical BSPP-G (ISO 228-1)
Valve bore25 mm
Max. pressure difference for DC model16 bar
Min. pressure difference0.2 bar
Max. differential pressure water/liquids16 bar
Medium temperature (continuous)-10 to 80 °C
Max. ambient temperature55 °C
ModelStraight
Indirect effectYes
Emergency manual operationNone
Electrical connectionPlug EN 175301-803 type A
Connection voltage24 V
Voltage typeDC
Deactivated when openNo
Switch-on duration100 %
Degree of protection (IP)IP65
Explosion safetyNone
Kvs value12.0
FreeflowNo
Thermal disinfectionNo
With sieveNo

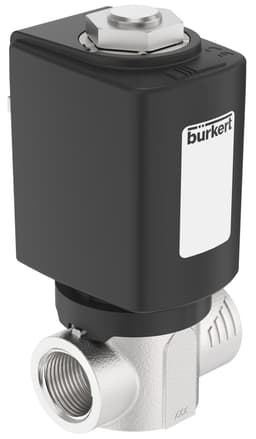

Housing materialStainless steel
Material qualityStainless steel 316 (1.4401)
Surface protectionUntreated
Material sealingFluorelastomer rubber (FPM/FKM)
Nominal diameter1/4 inch (8)
Connection 1Internal thread cylindrical BSPP-G (ISO 228-1)
Connection 2Internal thread cylindrical BSPP-G (ISO 228-1)
Valve bore3 mm
Max. pressure difference for DC model10 bar
Min. pressure difference0 bar
Max. differential pressure air/gases10 bar
Max. differential pressure water/liquids10 bar
Medium temperature (continuous)-10 to 100 °C
Max. ambient temperature55 °C
ModelStraight
Indirect effectNo
Emergency manual operationPush button
Electrical connectionPlug EN 175301-803 type A
Connection voltage24 V
Voltage typeDC
Deactivated when openNo
Switch-on duration100 %
Degree of protection (IP)IP65
Explosion safetyNone
FreeflowYes
Thermal disinfectionNo
With sieveNo
Housing materialStainless steel
Material qualityStainless steel 316 (1.4401)
Surface protectionUntreated
Material sealingFluorelastomer rubber (FPM/FKM)
Nominal diameter1/4 inch (8)
Connection 1Internal thread cylindrical BSPP-G (ISO 228-1)
Connection 2Internal thread cylindrical BSPP-G (ISO 228-1)
Valve bore4 mm
Max. pressure difference for DC model16 bar
Min. pressure difference0 bar
Max. differential pressure air/gases16 bar
Max. differential pressure water/liquids16 bar
Medium temperature (continuous)-10 to 140 °C
Max. ambient temperature55 °C
ModelStraight
Indirect effectNo
Emergency manual operationNone
Electrical connectionPlug EN 175301-803 type A
Connection voltage24 V
Voltage typeDC
Deactivated when openNo
Switch-on duration100 %
Degree of protection (IP)IP65
Explosion safetyNone
FreeflowYes
Thermal disinfectionNo
With sieveNo
Housing materialBrass
Material qualityCuZn40Pb2 (CW617N)
Surface protectionUntreated
Material sealingFluorelastomer rubber (FPM/FKM)
Nominal diameter1/4 inch (8)
Connection 1Internal thread cylindrical BSPP-G (ISO 228-1)
Connection 2Internal thread cylindrical BSPP-G (ISO 228-1)
Valve bore6 mm
Max. pressure difference for DC model16 bar
Min. pressure difference0 bar
Max. differential pressure air/gases16 bar
Max. differential pressure water/liquids16 bar
Medium temperature (continuous)-10 to 140 °C
Max. ambient temperature55 °C
ModelStraight
Indirect effectNo
Emergency manual operationNone
Electrical connectionPlug EN 175301-803 type A
Connection voltage24 V
Voltage typeDC
Deactivated when openNo
Switch-on duration100 %
Degree of protection (IP)IP65
Explosion safetyNone
FreeflowYes
Thermal disinfectionNo
With sieveNo

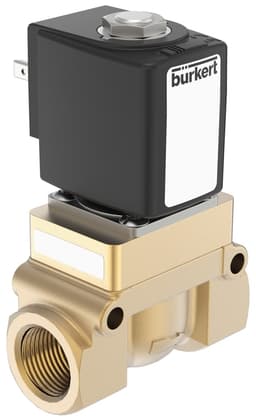

Housing materialBrass
Material qualityCuZn40Pb2 (CW617N)
Surface protectionUntreated
Material sealingPolytetrafluoroethylene (PTFE)
Nominal diameterDN 15
Connection 1Internal thread cylindrical BSPP-G (ISO 228-1)
Connection 2Internal thread cylindrical BSPP-G (ISO 228-1)
Valve bore12 mm
Max. pressure difference for DC model50 bar
Min. pressure difference1 bar
Max. differential pressure air/gases50 bar
Max. differential pressure water/liquids50 bar
Medium temperature (continuous)-10 to 100 °C
Max. ambient temperature55 °C
ModelStraight
Indirect effectYes
Emergency manual operationNone
Electrical connectionPlug EN 175301-803 type A
Connection voltage24 V
Voltage typeDC
Deactivated when openNo
Switch-on duration100 %
Degree of protection (IP)IP65
Explosion safetyNone
FreeflowNo
Thermal disinfectionNo
With sieveNo
Housing materialBrass
Material qualityCuZn40Pb2 (CW617N)
Surface protectionUntreated
Material sealingNBR (nitrile rubber)
Nominal diameterDN 15
Connection 1Internal thread cylindrical BSPP-G (ISO 228-1)
Connection 2Internal thread cylindrical BSPP-G (ISO 228-1)
Valve bore13 mm
Max. pressure difference for DC model10 bar
Min. pressure difference0.2 bar
Max. differential pressure water/liquids10 bar
Medium temperature (continuous)0 to 80 °C
Max. ambient temperature55 °C
ModelStraight
Indirect effectYes
Emergency manual operationPush button
Electrical connectionPlug EN 175301-803 type A
Connection voltage24 V
Voltage typeDC
Deactivated when openNo
Switch-on duration100 %
Degree of protection (IP)IP65
Explosion safetyNone
FreeflowNo
Thermal disinfectionNo
With sieveNo
Housing materialBrass
Material qualityOther
Nominal diameter1/8 inch (6)
Connection 1Internal thread cylindrical BSPP-G (ISO 228-1)
Connections 2 and 3Internal thread cylindrical BSPP-G (ISO 228-1)
Valve bore1.2 mm
Material sealingFluorelastomer rubber (FPM/FKM)
Max. pressure difference for DC model13 bar
Min. pressure difference0 bar
Medium temperature (continuous)-10 to 100 °C
Max. ambient temperature55 °C
Indirect effectNo
Switch-on duration100 %
Electrical connectionPlug EN 175301-803 type A
Connection voltage24 V
Voltage typeDC
Degree of protection (IP)IP65
Explosion safetyNone
Emergency manual operationPush button
Housing materialStainless steel
Material qualityStainless steel 316 (1.4401)
Nominal diameter1/8 inch (6)
Connection 1Internal thread cylindrical BSPP-G (ISO 228-1)
Connections 2 and 3Internal thread cylindrical BSPP-G (ISO 228-1)
Valve bore1.2 mm
Material sealingFluorelastomer rubber (FPM/FKM)
Max. pressure difference for DC model13 bar
Min. pressure difference0 bar
Medium temperature (continuous)-10 to 100 °C
Max. ambient temperature55 °C
Indirect effectNo
Switch-on duration100 %
Electrical connectionPlug EN 175301-803 type A
Connection voltage24 V
Voltage typeDC
Degree of protection (IP)IP65
Explosion safetyNone
Emergency manual operationPush button

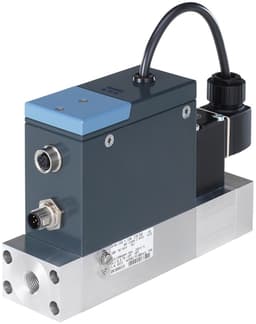

Housing materialStainless steel
Nominal diameter1/4 inch (8)
ConnectionInternal thread cylindrical BSPP-G (ISO 228-1)
Min. volume flow0.003 l/s
Max. volume flow0.5 l/s
Medium temperature (continuous)0 to 50 °C
Housing materialStainless steel
Nominal diameter1/4 inch (8)
ConnectionInternal thread cylindrical BSPP-G (ISO 228-1)
Min. volume flow0.006 l/s
Max. volume flow41.7 l/s
Medium temperature (continuous)0 to 50 °C
