Contactum
12 products, 299 attributes mapped across 10 ETIM classes. 73% coverage from public catalogs and spec sheets alone.
Products12
ModelBritish Standard
Concurrently switching neutral conductorNo
Protective contactFlat
Number of active contacts (round)0
Number of active contacts (flat)6
Number of active contacts (square)0
Mounting directionHorizontal
Assembly arrangementBasic element with full cover plate
With signal lampNo
Number of ports USB-A0
Number of ports USB-C2
Max. current rating of USB power supply4.8 A
Number of socket outlets2
Socket outlets phase-separatedNo
Number of socket outlets switchable2
Number of phases1
Imprint/indicationNone
Connection typeScrewed terminal
With hinged lidNo
Label space/information surfaceNo
ColourWhite
Metallic colourNo
TransparentNo
LockableNo
Eject-mechanismNo
With function lightingNo
With orientation lightingNo
Overvoltage protectionNo
Fault current protectionNo
With miniature fuseNo
Special power supplyNone
Mounting methodFlush-mounted
Type of fasteningMounting with screw
MaterialPlastic
Material qualityDuroplast
Surface protectionUntreated
With on/off switchYes
Colour of switch operatorWhite
Rotated central insertNo
Nominal current13 A
Nominal voltage230 V
Frequency50-60 Hz
Suitable for degree of protection (IP)IP2X
Device width146 mm
Device height86 mm
Device depth7 mm
Min. depth of built-in installation box35 mm
Compatible with Apple HomeKitNo
Compatible with Amazon AlexaNo
Compatible with Google AssistantNo
IFTTT support availableNo
With Wi-Fi signal repeaterNo
With built-in bluetooth speakerNo
ModelBritish Standard
Concurrently switching neutral conductorNo
Protective contactFlat
Number of active contacts (round)0
Number of active contacts (flat)6
Number of active contacts (square)0
Mounting directionHorizontal
Assembly arrangementBasic element with full cover plate
With signal lampNo
Number of ports USB-A0
Number of ports USB-C0
Number of socket outlets2
Socket outlets phase-separatedNo
Number of socket outlets switchable2
Number of phases1
Imprint/indicationNone
Connection typeScrewed terminal
With hinged lidNo
Label space/information surfaceNo
ColourWhite
Metallic colourNo
TransparentNo
LockableNo
Eject-mechanismNo
With function lightingNo
With orientation lightingNo
Overvoltage protectionNo
Fault current protectionNo
With miniature fuseNo
Special power supplyNone
Mounting methodFlush-mounted
Type of fasteningMounting with screw
MaterialPlastic
Material qualityDuroplast
Surface protectionUntreated
With on/off switchYes
Colour of switch operatorWhite
Rotated central insertNo
Nominal current13 A
Nominal voltage230 V
Frequency50-60 Hz
Suitable for degree of protection (IP)IP2X
Device width146 mm
Device height86 mm
Device depth7 mm
Min. depth of built-in installation box25 mm
Compatible with Apple HomeKitNo
Compatible with Amazon AlexaNo
Compatible with Google AssistantNo
IFTTT support availableNo
With Wi-Fi signal repeaterNo
With built-in bluetooth speakerNo
Wiring systemTwo-way switch
Method of operationRocker lever
Assembly arrangementBasic element with complete housing
Push button switchNo
Number of rockers1
Mounting methodSurface mounted
Type of fasteningScrew mounting
MaterialPlastic
Material qualityThermoplastic
Anti-bacterial treatmentNo
Surface protectionUntreated
Surface finishingMatt
ColourGrey
Colour of switch operatorGrey
Label space/information surfaceNo
Imprint/indicationNone
LightingNo
Suitable for degree of protection (IP)IP66
Nominal voltage230 V
Rated current20 A
Monitoring contactNo
Connection typeScrewed terminal
Heating switchNo
Washing machine switchNo
Device width95 mm
Device height95 mm
Device depth75 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
IFTTT support availableNo
Wiring systemTwo-way switch
Method of operationRocker lever
Assembly arrangementBasic element with full cover plate
Push button switchNo
Number of rockers2
Mounting methodFlush-mounted
Type of fasteningMounting with claw and screw
MaterialPlastic
Material qualityDuroplast
Surface protectionUntreated
ColourWhite
Colour of switch operatorWhite
Label space/information surfaceNo
Imprint/indicationNone
LightingNo
Suitable for degree of protection (IP)IP2X
Nominal voltage230 V
Rated current10 A
Monitoring contactNo
Connection typeScrewed terminal
Heating switchNo
Washing machine switchNo
Device width86 mm
Device height86 mm
Device depth7 mm
Min. depth of built-in installation box25 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
IFTTT support availableNo
Number of poles2
Rated voltage230 V
Rated current63 A
Rated fault current30 mA
Mounting methodDIN rail
Leakage current typeA
Selective protectionNo
Short-time delayed trippingNo
Voltage typeAC
With interlocking deviceNo
Frequency50/60 Hz
Degree of protection (IP)IP20
Width in number of modular spacings2
Built-in depth73 mm
Ambient temperature during operating-5 to 40 deg C °C
ColourWhite
Device width35 mm
Explosion-proofNo
Device height86 mm
Device depth73 mm
Number of poles (total)1
Number of protected poles1
Rated voltage230 V
Rated current32 A
Rated fault current30 mA
Mounting methodDIN rail
Leakage current typeA
Rated short-circuit breaking capacity according to EN 610096 kA
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
Disconnection characteristicUndelayed
Voltage typeAC
Frequency50/60 Hz
Release characteristicB
Concurrently switching neutral conductorNo
With interlocking deviceNo
Ambient temperature during operating-5 to 40 deg C °C
Width in number of modular spacings1
Built-in depth75 mm
Degree of protection (IP)IP20
With on/off switchYes
With signal lampNo
With cable entryNo
Nominal current13 A
Nominal voltage220-250 V
Frequency50 Hz
Residual current circuit breaker (RCCB)No
Mounting methodFlush-mounted
ColourWhite
MaterialPlastic
Material qualityDuroplast
Colour of switch operatorWhite
Suitable for degree of protection (IP)IP2X
LockableNo
Tamperproof fixingNo
Device width86 mm
Device height86 mm
Device depth7 mm
Min. depth of built-in installation box25 mm
Mounting methodSurface mounted
Number of rows1
Number of openings for socket outlets0
Width in number of modular spacings16
Type of coveringDoor
Cover modelClosed
Type of doorSingle
Transparent cover/doorNo
Signal passing doorNo
Housing materialSteel
Earthing terminal blockYes
Neutral terminal blockYes
DIN-railYes
Extension possibleNo
ColourWhite
Degree of protection (IP)IP40
Height262 mm
Width371 mm
Depth114 mm
Assembly arrangementBasic element with full cover plate
Mounting methodFlush-mounted
With hinged lidNo
Voltage reversibleYes
Nominal voltage low value115 V
Nominal voltage high value230 V
Rated output20 VA
MaterialPlastic
Material qualityDuroplast
Surface protectionUntreated
ColourWhite
TransparentNo
Device width86 mm
Device height146 mm
Device depth7 mm
With built-in installation boxNo
Min. depth of built-in installation box47 mm
Built-in depth75 mm

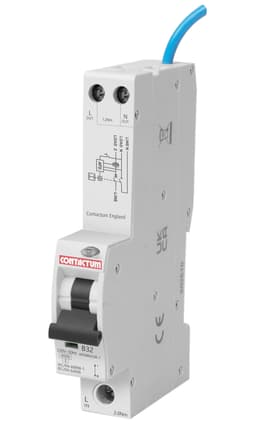

Release characteristicB
Number of poles (total)1
Number of protected poles1
Rated current32 A
Rated voltage230 V
Rated insulation voltage Ui250 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC
Frequency50-60 Hz
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Width in number of modular spacings1
Degree of protection (IP)IP20
Ambient temperature during operating-5 to 40 deg C °C
Explosion-proofNo
IEC-amperage32 A
Number of poles5
Voltage according to EN 60309-2400 V (50+60 Hz) red
Clock hour position6h
Identification colourRed
Phase inverterNo
Degree of protection (IP)IP67
Connection systemScrewed terminal
Cable entryGland nut
Insert directionStraight
MaterialPlastic
Military modelNo
Release characteristicB
Number of poles2
Rated current32 A
Rated voltage230 V
Rated short-circuit breaking capacity according to EN 608986 kA
Voltage typeAC
Frequency50-60 Hz
Concurrently switching neutral conductorYes
Width in number of modular spacings1
Additional equipment attached at deliveryFire protection switch
Degree of protection (IP)IP20
